OKI Electric Cable(President: Hideo Yamaguchi, Head office: Kawasaki, Kanagawa Prefecture), the OKI Group’s electric cable company, has developed two new types of environment-proof FPC (flexible printed circuit) products capable of use under harsh conditions, including the conditions found in high-temperature and high-pressure steam environments: a heat-proof FPC and a high-pressure steam-proof FPC. Global sales will commence in June for applications involving equipment and devices that require high-temperature heat treatment or high-pressure steam sterilization. Sales of at least JPY100 million are expected for this fiscal year.

High-pressure steam-proof FPC (left)
and heat-proof FPC (right)

FPCs are flexible printed circuit boards that use plastic film as substrates. Compared to rigid conventional circuit boards, they are extremely thin and highly flexible. They can be bent freely, allowing use in narrow spaces in electronic devices; in three-dimensional configurations; and in moving parts subject to repeated bending. Components are mounted on FPCs in the same way as on rigid circuit boards, making the technology key to reducing the size and weight of electronic devices and creating a broad range of applications across industries. FPCs are found in both everyday electronic devices and in industrial electronic equipment.

Demand for FPCs has grown in recent years for use in semiconductor manufacturing equipment involving heat treatment at temperatures of around 200°C and medical equipment requiring high-pressure steam sterilization. These conditions demand the capacity to withstand harsh environments. Exposing conventional FPCs to temperatures of 80°C or above or to humid and high-pressure steam environments degrades adhesives in the insulating layers protecting circuit boards, resulting in peeling of the insulation layer and other defects.

The newly developed heat-proof FPC applies OKI Cable’s proprietary surface treatment to copper foil to improve adhesion to the insulating layer. In addition to this proprietary surface treatment, the high-pressure steam-proof FPC incorporates silicone resin into the insulating layer to improve resistance to high-pressure steam. This maintains insulation layer adhesion even after exposure to high-temperature heat treatment at 200°C for 1,000 hours (for the heat-proof FPC) and after high-pressure steam treatment at 132°C and 0.2 MPa for 15 minutes × 250 cycles (for the high-pressure steam-proof FPC). Insulation resistance and other electrical characteristics meet all the requirements specified by the applicable standard (JPCA-UB01).

“The features of FPCs can enable wiring for applications and in devices where FPCs previously could not be used due to operating environment restrictions. We believe the greater freedom in equipment design provided by these characteristics will lead to devices with ever greater functionality,” commented Hideo Yamaguchi, President of OKI Electric Cable.

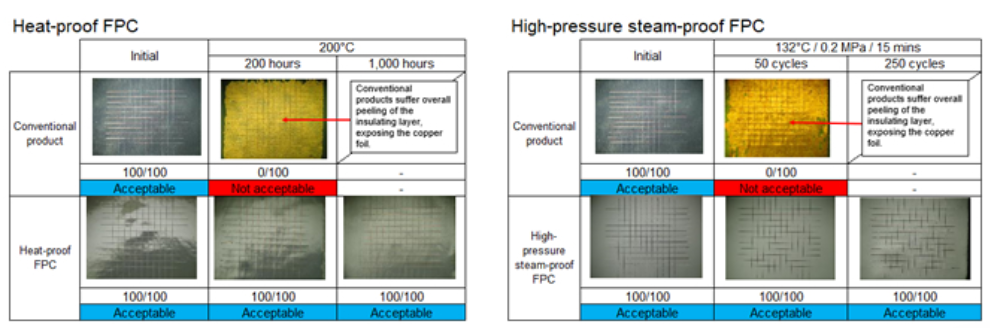

Insulating layer adhesion (solder resist and symbol mark coating adhesion: JPCA-UB01)

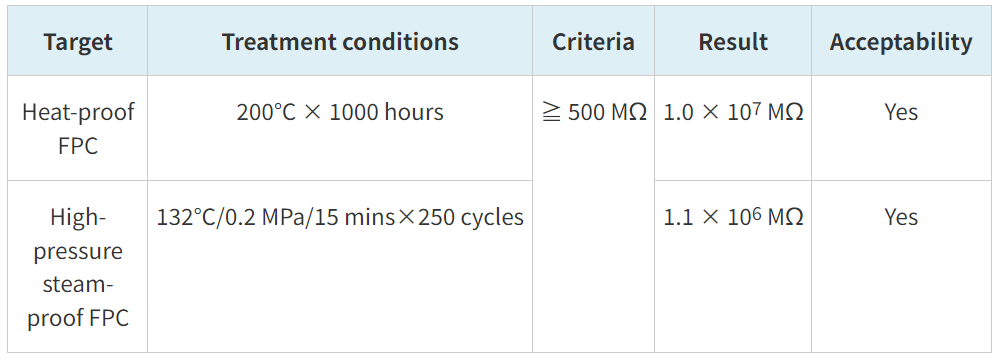

Electrical characteristics (insulation resistance: JPCA-UB01)
